Economical xtra ST Series

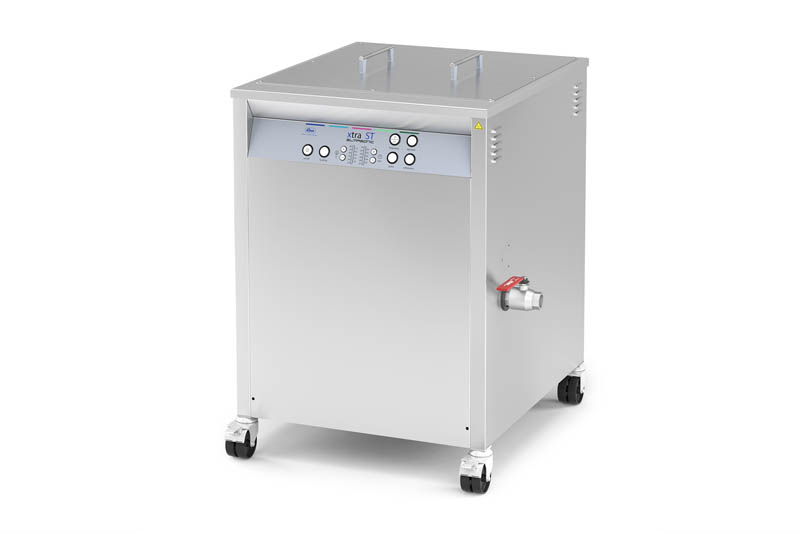

Elmasonic xtra ST Series Ultrasonic Cleaners

The 7-member xtra ST family comprises the workhorse units of Elmasonic industrial ultrasonic cleaners.  They’re found in shops handling a wide range of cleaning tasks – from grungy engine components to newly fabricated assemblies ready for painting, plating or further processing.  Splash-proof LED-equipped control panels tell at a glance what frequency is being used – 25 or 45 kHz – which functions are operating, and the status of cleaning cycles in terms of time and cleaning solution temperature.

The tank is equipped with two positions for hanging baskets facilitating loading products to be cleaned, and draining freshly cleaned loads while conserving cleaning chemistries by returning them to the tank.  Cleaning tasks are further eased because the Elmasonic xtra ST units can be rolled to the site – requiring only a source of electric power.  Models are equipped with lockable wheels to keep them in place when on site.

Elmasonic xtra ST industrial ultrasonic cleaners are easy to operate and easy to maintain. If service is needed, simply swap out the control panel/generator assembly cutting down time to a minimum.  The new generator automatically tunes itself to the transducers. They come with a 3-year tank warranty (for single shift operation).

Elmasonic xtra ST Series Features

  • Maximum ultrasonic power
  • User selectable 25 or 45 kHz frequencies
  • Pulse mode for intensive bursts of ultrasonic power for cleaning and degassing
  • Sweep mode for safe, even cleaning
  • Dynamic sweep/pulse delivers the advantages of both modes
  • Ergonomic inclined splash-proof operating panel
  • LED panel displays activated functions; set and actual time and temperature
  • Clean at 30˚C to 80˚C; sonication starts at set temperature
  • Automatic safety shut off at 90˚C or after 12 hours of continuous operation
  • 3-year tank warranty (single shift operations)

Additional Features for Large Scale Cleaning with the Elmasonic xtra ST Series

  • Control panel/generator assembly easily removed for quick repair
  • Replaced generators automatically adjust to the unit’s transducers
  • Pre-programmed cleaning routine for common cleaning tasks
  • Cavitation-resistant stainless steel tanks and stainless steel cabinets
  • Sloped tank bottom facilitates draining via side-mounted drain valve
  • Two basket positions for cleaning and draining
  • Comprehensive operations manual
  • Optional filtration system
  • Optional hand held rinse
  • Optional table
  • Optional fine mesh basket insert for small parts
  • Optional hinged flip-top sound-deadening cover

Available xtra ST Series Models


Tank Volume (gal.): 7.9
Tank Internal Dimensions
(W x D x H in.):
11.8 x 11.8 x 11.8

See Details


Tank Volume (gal.): 13.2
Tank Internal Dimensions
(W x D x H in.):
11.8 x 11.8 x 19.7

See Details


Tank Volume (gal.): 15.3
Tank Internal Dimensions
(W x D x H in.):
19.7 x 13.0 x 13.8

See Details


Tank Volume (gal.): 21.9
Tank Internal Dimensions
(W x D x H in.):
19.7 x 13.0 x 19.7

See Details


Tank Volume (gal.): 33.3
Tank Internal Dimensions
(W x D x H in.):
23.6 x 23.6 x 13.8

See Details


Tank Volume (gal.): 42.8
Tank Internal Dimensions
(W x D x H in.):
23.6 x 23.6 x 17.7

See Details


Tank Volume (gal.): 67.4
Tank Internal Dimensions
(W x D x H in.):
29.5 x 25.6 x 20.5

See Details

Available Peripherals

Elma Filter Extends Cleaning Solution Life

The Elma Filter Option prolongs cleaning solution effectiveness by monitoring and removing contaminants and fine particles during cleaning cycles. Benefits: extended bath effectiveness, lower water consumption and reduced tank erosion from settled particles. When flow rate decreases due to contaminant buildup, filter cartridges are easily replaced by shop personnel. Elma Filter is available as an option on all newly purchased Elma xtra ST units offered by Tovatech or can be retrofitted on your existing xtra ST equipment.

Elma Filter peripheral for Elmasonic xtra ST - Front view

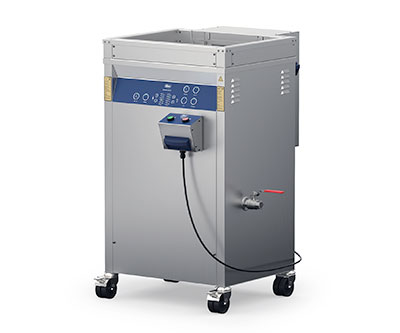

Elma Filter peripheral for Elmasonic xtra ST - Oblique view

Elma Rinse Achieves Spotless Results

Use the Elma Rinse with tap water to remove heavy, loose contaminants before ultrasonic cleaning to help prolong cleaning solution life.  After the items have been cleaned, spray rinse products with demineralized (DM) water provided by the included filtration system, to remove remaining residues. The Elma Rinse option can be table or wall mounted and is equipped with two rinsing wands, one for tap and one for demineralized water.

Elmasonic ST Rinse Peripherals

Elma Table Supports Products and Elma Rinse

Wheel mounted for portability, the Elma Table supports products for pre-and post cleaning rinsing, draining and drying.  It is equipped with a splash guard, drip tray, and ball-valve drain to disposal.  The Elma Rinse can be integrated into the Elma Table for convenience and space saving.

Elmasonic ST Table - Front View

Large Capacity Extra Power Industrial Ultrasonic Cleaners

Dual-Frequency: Set unit to clean at 25 kHz or 45 kHz to accomplish a broad range of cleaning tasks with a single ultrasonic cleaner
LED Display: Steady LEDs indicate set time and set temp; flashing LEDs indicate remaining time and actual temp.
icon-heaterHeater: Set cleaning temperature from 30⁰ to 80⁰C to speed the process.
icon-sweep-frequency-modeSweep Mode: Continuous slight variation of ultrasonic frequency provides uniform, safe cleaning.  Sweep eliminates hot spots, dead zones, and standing waves.
Pulse Mode: Intermittent bursts of additional power dissolve nearly insoluble samples and remove tenacious contaminants.
Dynamic Sweep/Pulse Mode delivers the advantages of sweep and pulse.
icon-timerTimer: Program cleaning up to 30 minutes or continuous with manual shut-off.  Continuous operation shuts off automatically after 12 hours.
Drain: Side mounted stainless steel ball valve drain speeds solution changes and tank cleaning.
